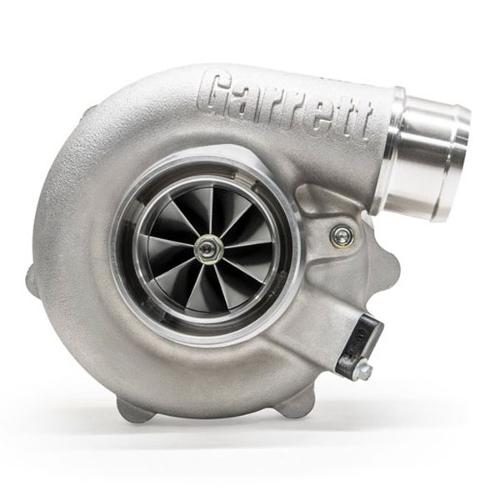

Garrett G30-660 0.61a/r 54mm/55mm EWG STD V-Band/V-Band
Save 29%
Original price
$4,730.00
Original price
$4,730.00
-
Original price
$4,730.00
Original price
$4,730.00
Current price
$3,350.00
$3,350.00
-
$3,350.00
Current price
$3,350.00
- Bearing System: Ball Bearing
- Cooling System: Oil & Water Cooled
- Horsepower: 350 - 660
- New G Series compressor wheel aerodynamics
- Fully machined speed sensor and pressure ports
- Standard and reverse rotation configurations available
- Oil restrictor and water fittings included with purchase
- One piece center housing and backplate for increased durability
- 4 water jacket ports for customizable installation
- Mar-M turbine wheel material rated up to 1050° C | 1922° F
- Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Compressor | Turbine | ||||||
---|---|---|---|---|---|---|---|
Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
54mm | 67mm | 65 | 0.70 | 60mm | 55mm | 84 | |
G30-660 Standard Rotation Supercore PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | |
880693-5001S | 740902-0086 | 0.61 | V-Band | V-Band | Free Float | N | |
740902-0087 | 0.83 | V-Band | V-band | Free Float | N | ||
740902-0088 | 1.01 | V-Band | V-band | Free Float | N | ||
740902-0089 | 1.21 | V-Band | V-band | Free Float | N | ||
G30-660 Reverse Rotation Supercore PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | |
880694-5001S | 740902-0096 | 0.61 | V-Band | V-Band | Free Float | N | |
740902-0097 | 0.83 | V-Band | V-band | Free Float | N | ||
740902-0098 | 1.01 | V-Band | V-band | Free Float | N | ||
740902-0099 | 1.21 | V-Band | V-band | Free Float | N |
