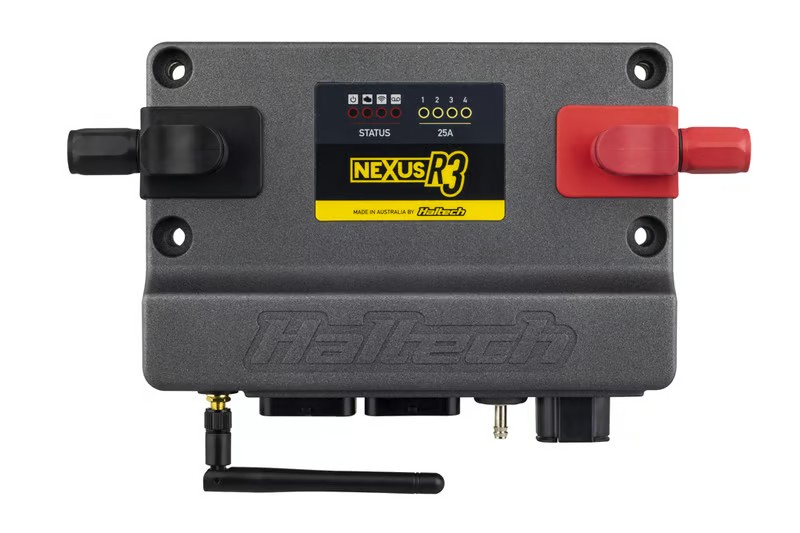

NEXUS R3 VCU HT-193000
by HALTECH ECU
Original price
$3,399.00
-
Original price
$3,399.00
Original price
$3,399.00
$3,399.00
-
$3,399.00
Current price
$3,399.00
VCU OVERVIEW
Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
